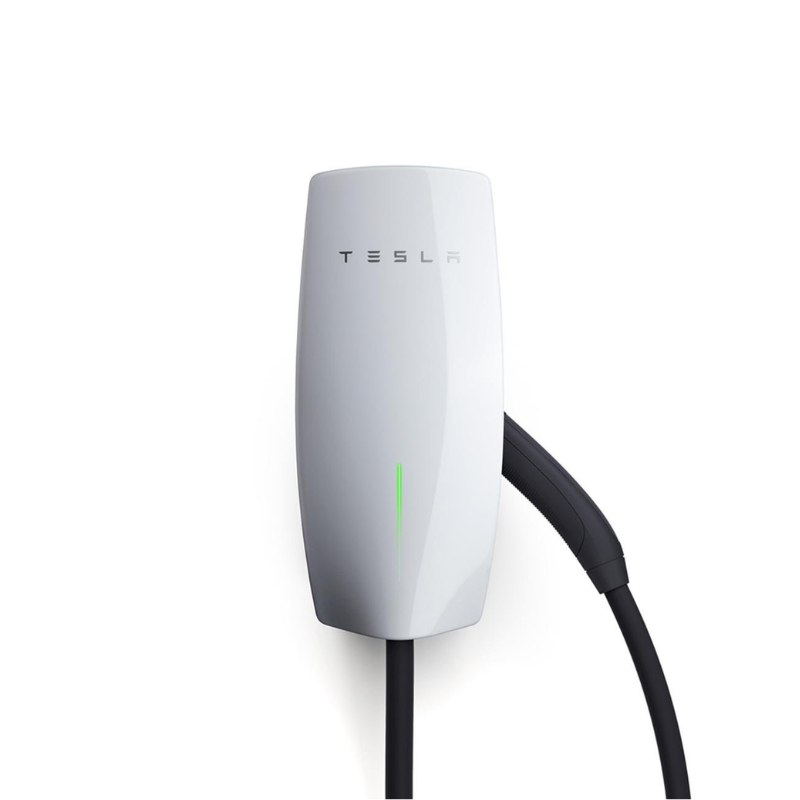

Tesla Wall Connector Gen 3 – 7kW / 22kW Type 2 Tethered EV Charger (7.3m Cable)
£400.00 (£480.00 inc. vat)
Tesla Wall Connector Gen 3 – 7kW / 22kW Type 2 Tethered EV Charger (7.3m Cable)
High-performance, intelligent, and beautifully designed home and workplace charging
The Tesla Wall Connector Gen 3 combines speed, sophistication, and reliability in one of the most advanced electric vehicle chargers available today. Designed for both Tesla and non-Tesla EVs with a Type 2 port, it delivers up to 22kW of three-phase power and integrates seamlessly with the Tesla App for full control, scheduling, and monitoring.
Sleek and compact, this charger suits every environment from homes and apartments to offices, hotels, and commercial sites. With built-in safety features, Wi-Fi connectivity, and automatic firmware updates, it offers the perfect balance of performance, style, and intelligence.
Smart. Safe. Connected.
Powerful Performance
Charge at up to 22kW on three-phase supply, or 7.4kW on single-phase, delivering up to 71 km (44 miles) of range per hour.
Universal Compatibility
Fully compatible with all Tesla vehicles and any EV equipped with a Type 2 charging port.
Smart Scheduling and Management
Control, schedule, and track every charging session through the Tesla App. Optimise charging during off-peak hours and monitor energy usage in real time.
Seamless Integration
Open the Tesla charge port directly from the connector button for effortless plug-in convenience.
Compact and Durable Design
At just 345mm high and 155mm wide, the Wall Connector features a sleek glass faceplate and a robust IP55-rated enclosure suitable for indoor or outdoor use.
Scalable Power Sharing
Supports power sharing between multiple Wall Connectors to distribute load intelligently across multiple vehicles at the same site.
Built-in Safety and Reliability
Integrated Protection
Features a built-in RCD (Type A + 6mA DC) and continuous ground monitoring for advanced safety without requiring a costly external Type B RCD.
Thermal and Fault Protection
Temperature sensors automatically adjust or pause charging if excessive heat or voltage fluctuation is detected, maintaining stability and safety.
Comprehensive Certification
Fully compliant with CE, IEC 61851-1, and UK installation standards (BS7671). Suitable for TN, TT, and IT earthing systems with optional PEN fault protection for UK TN-C-S (PME) networks.
Connected and Future Ready
Smart Wi-Fi Control
2.4GHz Wi-Fi connectivity enables setup, configuration, and ongoing monitoring. The built-in access point makes commissioning quick and simple.
Automatic Updates
Receive over-the-air firmware updates to stay current with the latest features, diagnostics, and improvements.
Multi-Unit Load Management
Connect multiple Wall Connectors on the same circuit and manage power distribution intelligently.
Technical Specifications
| Specification | Details |
|---|---|
| Rated Power | 7.4kW (single-phase) / 22kW (three-phase) |
| Input Voltage | 230V (1-phase) / 400V (3-phase), 50–60Hz |
| Output Current | Adjustable up to 32A |
| Connector Type | Type 2 (IEC 62196) Tethered Cable |
| Cable Length | 7.3 metres |
| Enclosure Rating | IP55 (indoor and outdoor use) |
| Operating Temperature | –30°C to +50°C |
| Connectivity | Wi-Fi 2.4GHz (802.11 b/g/n) |
| Load Management | Power sharing for multiple Wall Connectors |
| Residual Current Detection | Type A + DC 6mA built-in |
| Supported Earthing Systems | TN / TT / IT |
| Material | Polycarbonate enclosure with glass faceplate |
| Dimensions | 345mm (H) × 155mm (W) × 110mm (D) |
| Weight | 6.8kg |
| Firmware Updates | Automatic over Wi-Fi |
| Warranty | 4 years (residential use) / 1 year (commercial use) |
Installation Guide: Tesla Wall Connector Support Page
Smarter Charging Starts Here
Upgrade your home or workplace with the Tesla Wall Connector Gen 3. Combining elegant design, powerful charging performance, and intuitive smart control, it’s built to deliver the ultimate EV charging experience for every driver.
Additional information
| Brand | Tesla |
|---|
