VCHRGD Seven Pro 7.4 kW Type 2 Universal Home EV Charger – Tethered
£374.20 (£449.04 inc. vat)

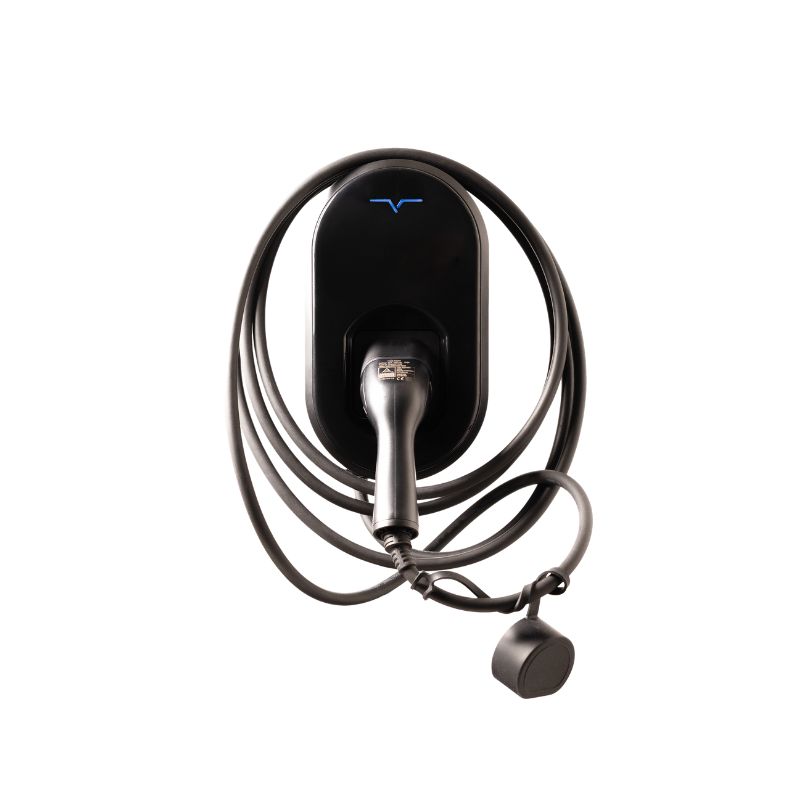

VCHRGD Seven Pro 7.4 kW Type 2 Home EV Charger (Tethered, 7.5 m)
Smart, stylish, and built for effortless home charging
The VCHRGD Seven Pro 7.4 kW Tethered EV Charger delivers intelligent, reliable, and secure charging for your electric vehicle. Designed for homes, businesses, and fleet use, it combines advanced safety protection, solar compatibility, and dynamic power management in a sleek, durable design.
With an integrated 7.5 metre Type 2 cable, it offers simple plug-in convenience every time. Combined with full VCHRGD Home App integration, the Seven Pro lets you control, schedule, and monitor every charge directly from your smartphone.
Smart. Connected. Convenient.
Powerful Performance
Delivers up to 7.4 kW (32 A single phase) for fast, efficient Mode 3 charging compatible with all Type 2 electric vehicles.
Tethered Convenience
Supplied with a durable 7.5 metre Type 2 cable for plug-and-go charging. Perfect for regular use and quick connection without handling separate cables.
Smart Scheduling and Solar Integration
The VCHRGD Home App (Android and iOS) lets you schedule charging to match off-peak tariffs, track energy use, and enable solar charging using one or two CT clamps to utilise your own renewable generation.
Dynamic Load Management
Automatically balances charging power to protect your main fuse and prevent overload when household energy demand increases.
RFID and App Authentication
Secure access to charging with two included RFID cards or authorise sessions directly through the VCHRGD Home App for complete control.
Built-In Safety and Reliability
Comprehensive Protection System
Includes integrated PEN fault detection, 6 mA DC leakage protection, RCD Type A compatibility, temperature monitoring, and over/under-voltage protection for safe operation in all conditions.
Durable Construction
Built with an IK10-rated ABS polycarbonate enclosure and IP54 weatherproof rating, the Seven Pro is engineered for indoor or outdoor installation and year-round reliability.
Simple Installation
Push-fit hardware and ample wiring space make installation fast and cost-effective for installers.
Connected and Future Ready
Smart Connectivity
Wi-Fi and Bluetooth enabled as standard (IEEE 802.11 b/g/n @ 2.4 GHz, WPA-2 secured) with optional 4G connectivity for remote locations.
Automatic Firmware Updates
Stay up to date with new features and Smart Charging Regulation compliance through automatic Wi-Fi updates.
VCHRGD Home App
Schedule charging, track usage and costs, enable solar charging, and view charge history from anywhere with the free VCHRGD Home App.
Technical Specifications
| Specification | Details |
|---|---|
| Rated Power | 7.4 kW (single phase) |
| Input Voltage | 230 V AC (50/60 Hz) |
| Output Current | Adjustable 6 A to 32 A |
| Connector Type | Type 2 (IEC 62196-2) Tethered Cable |
| Cable Length | 7.5 metres |
| Charging Mode | Mode 3 (IEC 61851-1) |
| Dynamic Load Balancing | Built in (CT clamp included) |
| Earth Protection | Integrated PEN fault detection |
| DC Leakage Protection | 6 mA DC built in |
| Standby Power Consumption | < 2.5 W |
| Enclosure Rating | IP54 / IK10 |
| Operating Temperature | –25 °C to +50 °C |
| Connectivity | Wi-Fi and Bluetooth (2.4 GHz) |
| Optional Connectivity | 4G cellular module |
| Colour | Two-tone matte and gloss black finish |
| Dimensions | 300 mm (L) × 180 mm (W) × 90 mm (D) |
| Weight | Approx. 4 kg (with cable) |
| Material | ABS polycarbonate |
| Compliance | BS 7671: 722.411.4.1 Ident V, IEC 61000-4, IEC 61851-1 |
| Firmware Updates | Automatic via Wi-Fi |
| Warranty | 3-year manufacturer warranty |
User Guide: Download PDF
Smarter Charging Starts Here
Upgrade your home with the VCHRGD Seven Pro Tethered Charger and enjoy fast, reliable, and intelligent charging every day. Designed for ease of use and built to last, it’s the perfect solution for convenient home EV charging.
Additional information
| Brand | VCHRGD |
|---|
