Zappi 7kW/22kW Tethered EV Charger

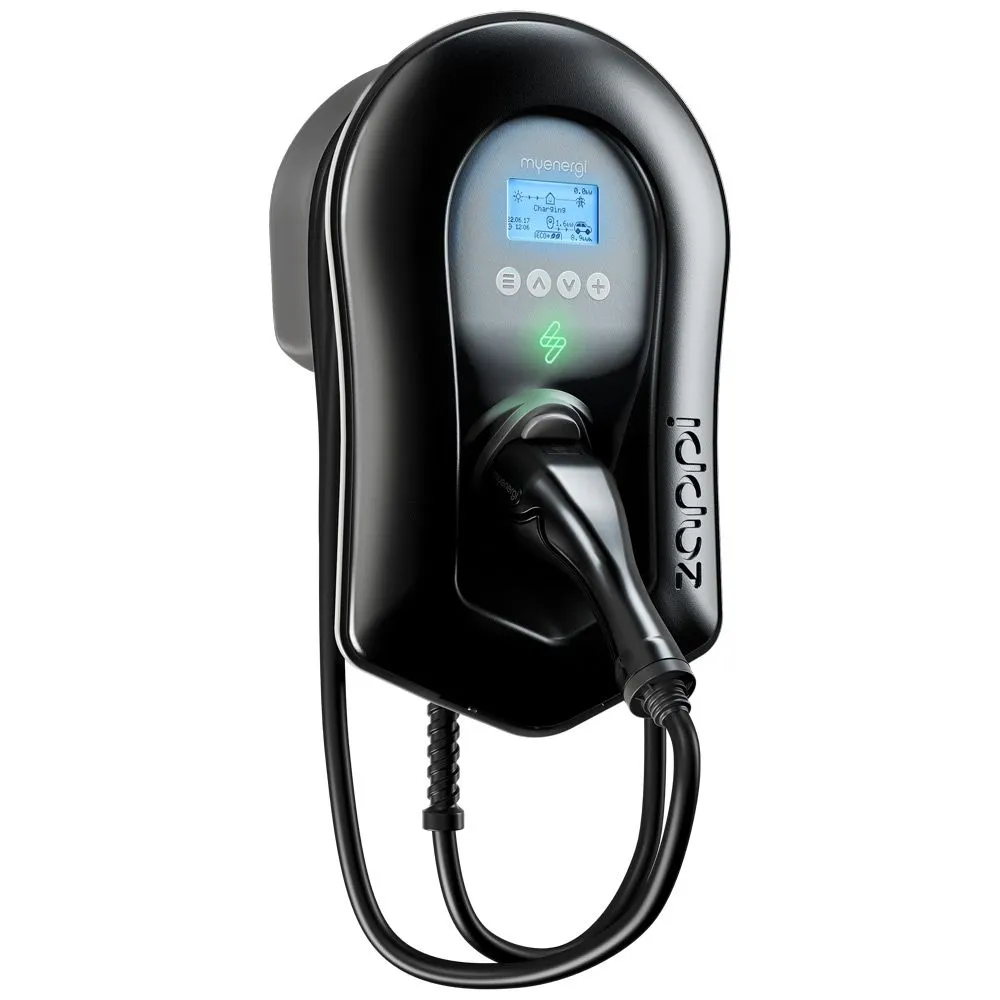

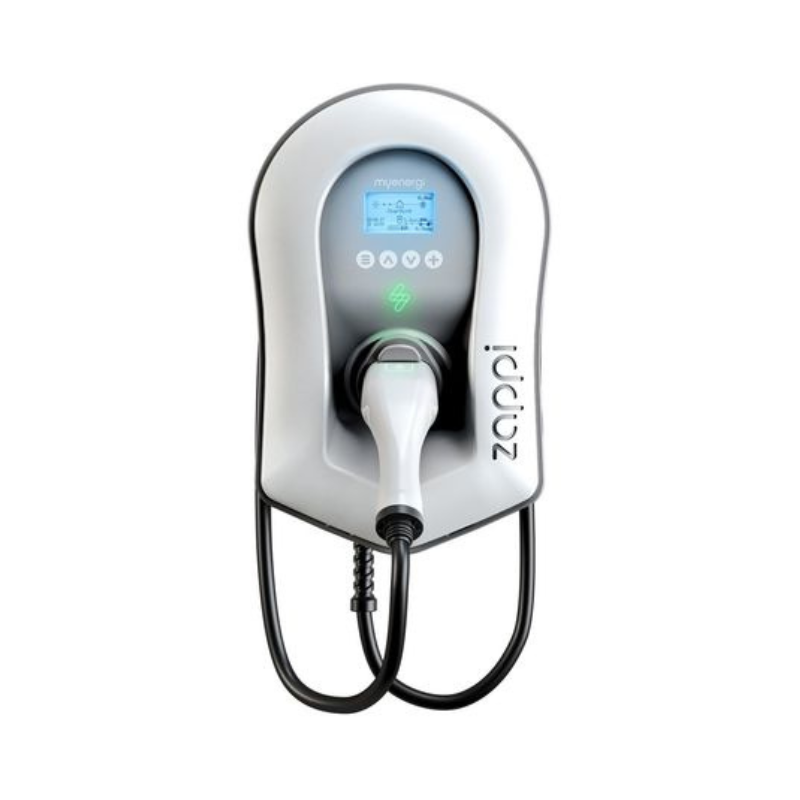

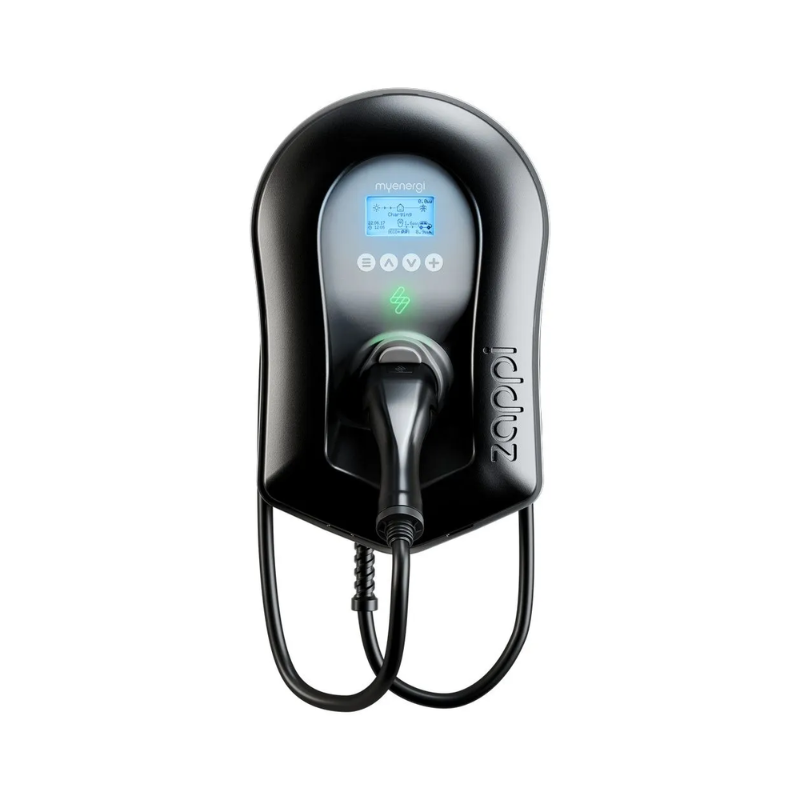

Zappi 7kW / 22kW Tethered EV Charger – Black or White

Smart, powerful, solar-integrated EV charging with remote control and a futureproof design.

The Zappi from MyEnergi is a British-built EV charger available in both 7kW (single-phase) and 22kW (three-phase) models. It includes solar compatibility, dynamic load balancing, remote app control, and three intelligent charging modes. Whether you want to charge using surplus solar energy, off-peak tariffs, or just top up quickly, Zappi gives you the flexibility and control to do it your way.

This tethered version includes a 6.5m Type 2 cable with an integrated holster, making it ideal for homes and commercial installations alike.

Key Features

• Available in 7kW or 22kW (single or three phase)

• Tethered with a 6.5m Type 2 cable (integrated holster)

• Compatible with all Type 2 EVs

• 3 charging modes: ECO, ECO+, and FAST

• App controlled via myenergi app (iOS & Android)

• Charge scheduling and remote access

• Dynamic load balancing and solar integration

• Weatherproof (IP65), robust (IK10) and tamper-resistant

• OZEV-approved and CE certified

• Available in black or white

Charging Modes

ECO Mode
Uses solar and grid power together, always maintaining a minimum charge level.

ECO+ Mode
Only uses surplus self-generated solar power. Charging pauses if solar input drops too low.

FAST Mode
Charges at maximum power, regardless of the source (solar, grid, or both).

What’s Included

• Zappi Tethered EV Charger (7kW or 22kW)

• 6.5m Type 2 cable (integrated)

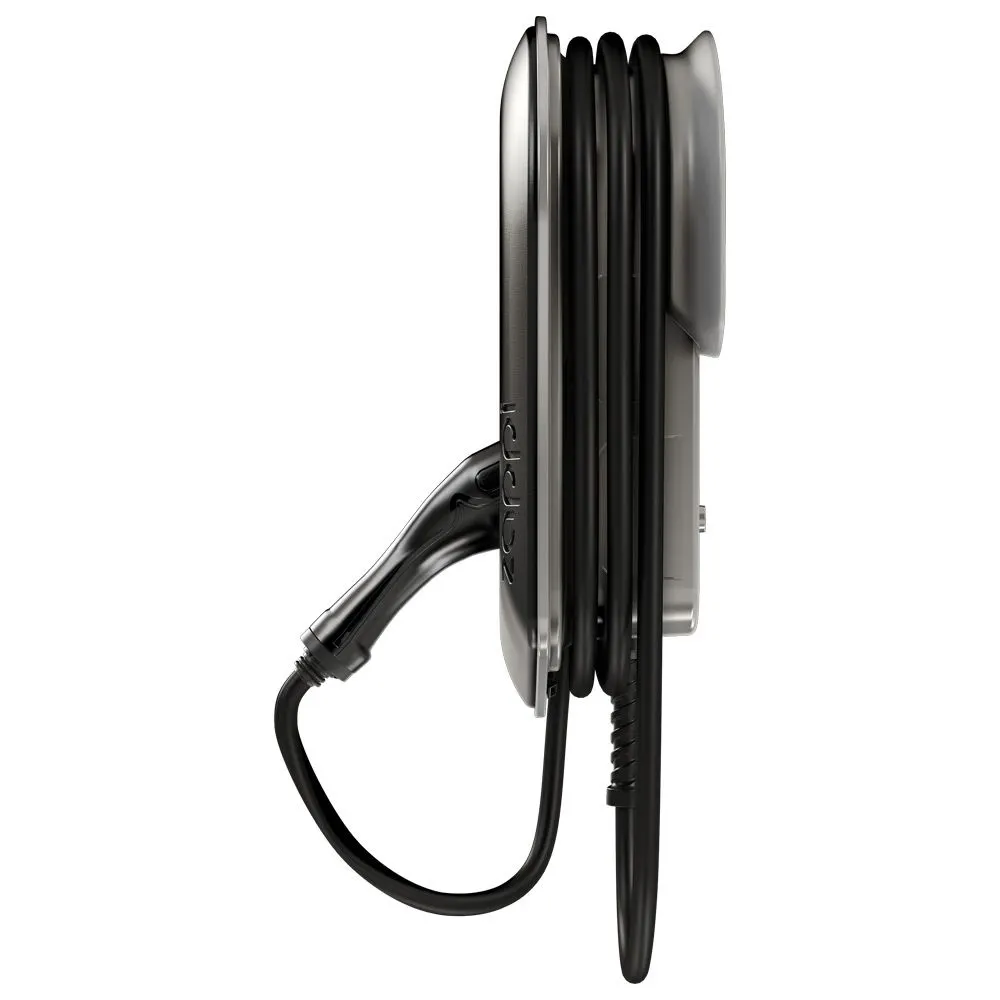

• Integral cable holster

• Clip-on grid sensor(s)

• Installation and user manuals

• Access to the myenergi app

Technical Specifications

App Control: Yes
Auto Power Balancing (Load Management): Yes
Brand: MyEnergi
CE Certified: Yes
CT Limitations: CT1/CT3: Bi-directional, CT2: Uni-directional
Cable Entry: Rear or Bottom
Cable Holster Supplied: Integral Wrap Around Cable Holder
Cable Length: 6.5m
Cable Type: Tethered
Charging Current: 6A to 32A (Variable)
Charging Mode: Mode 3
Charging Modes: ECO, ECO+, FAST
Compatibility: Type 2 Vehicles
Communication Protocol: OCPP 1.6J (via Cloud)
Connection Type: 6.5m Type 2 Cable
Dimensions (HxWxD): 439mm x 282mm x 122mm
Display: Graphical Backlit LCD
Dynamic Load Balancing: Optional
Economy Tariff Sense: Input 230V AC Sensing (4.0kV Isolated)
Enclosure Material: PC / ASA (batch dependent)
Front Bolt Logo: Multicolour LED (charge status)
Grid Current Sensor: 100A max, 16mm cable diameter
Impact Resistance: IK10
Input Voltage Rating: 230V
Integral Protection: 6mA DC Protection RDC-DD in Accordance with IEC62955
LED Indicator: Multicolour front LED
Lockable: Yes
Metering Accuracy: Class B (1%) – EN 50470
Model: ZAPPI-2H22TW/TB/UB/UW (7kW/22kW Tethered)
Mounting: Wall, Stand
Mounting Location: Indoor or Outdoor (Permanent)
Operating Temperature: -25°C to +40°C
OZEV Approved: Yes
Power Rating: Multiphase 7kW & 22kW
Product Type: EV Charger
Protection: Integrated PEN Fault Protection
Rated Current: 32A Max
Rated Power: 7kW (Single Phase) or 22kW (Three Phase)
Rated Supply Voltage: 400V AC 3 Phase (+/-10%)
Range: Zappi
Remote Charging Schedule: Yes
Socket Type: Type 2
Standby Power Consumption: 3W
Status Indicator: LCD Screen
Supply Frequency: 50Hz
Supply Voltage: 230V AC (1P) / 400V AC (3P) ±10%
Tamper Proof: Yes
Warranty: 3 Years
Wi-Fi: Yes
Wireless Interface: 868/915MHz (Proprietary Protocol)
