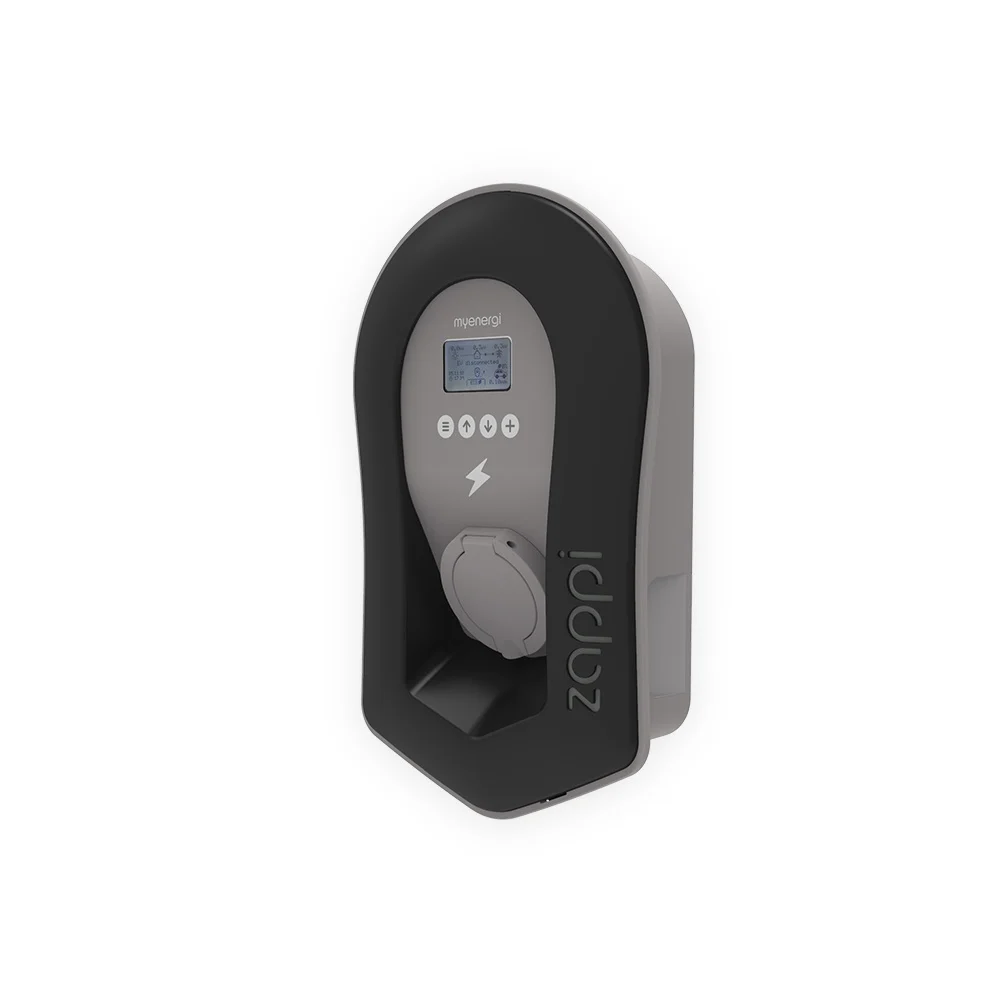

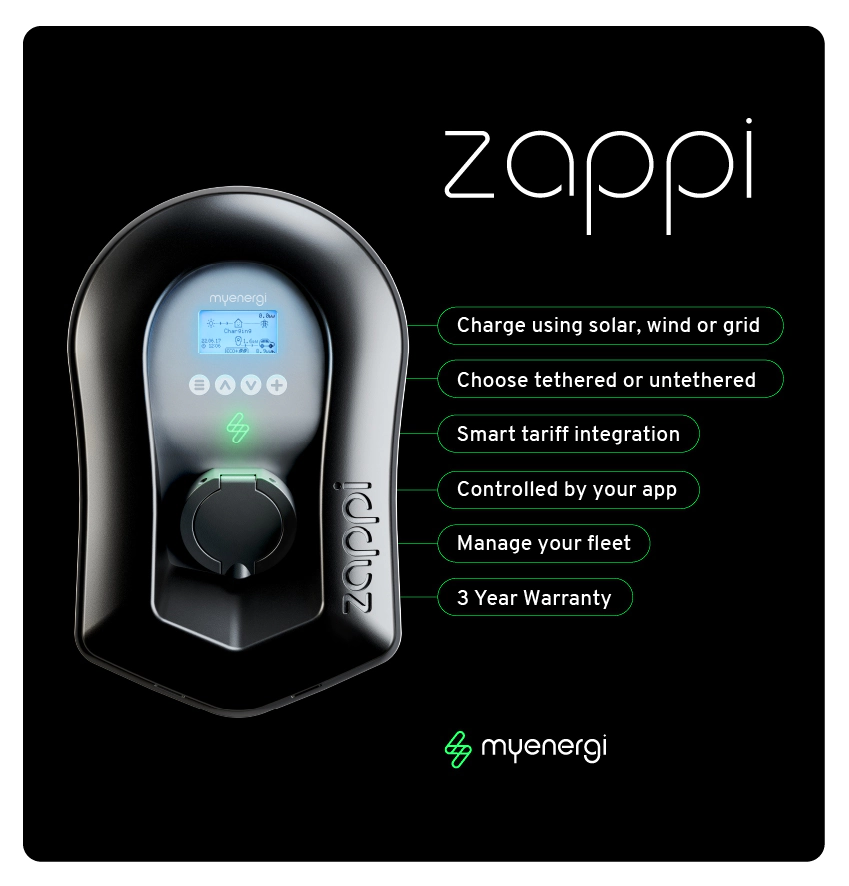

Zappi 7kW/22kW Untethered EV Charger

Zappi 7kW / 22kW Untethered EV Charger – Black or White

Flexible, intelligent EV charging – solar-ready, tariff-aware, and fully app-controlled.

The Zappi Untethered EV Charger from MyEnergi offers the same smart charging capabilities as the tethered version, with the flexibility to use your own Type 2 charging cable. Perfect for homes and businesses alike, it supports 7kW single-phase and 22kW three-phase charging, with integrated solar and battery compatibility, remote scheduling, and dynamic load balancing.

No cable, no clutter – just fast, clean, intelligent charging.

Key Features

• Available in 7kW or 22kW (single or three-phase)

• Untethered with lockable Type 2 socket

• Compatible with all Type 2 EVs (cable not included)

• ECO, ECO+, and FAST smart charging modes

• App control with live monitoring and scheduling

• Dynamic load balancing and solar integration

• Suitable for wall or pedestal mounting

• IP65 weatherproof and IK10 impact resistant

• OZEV-approved and CE certified

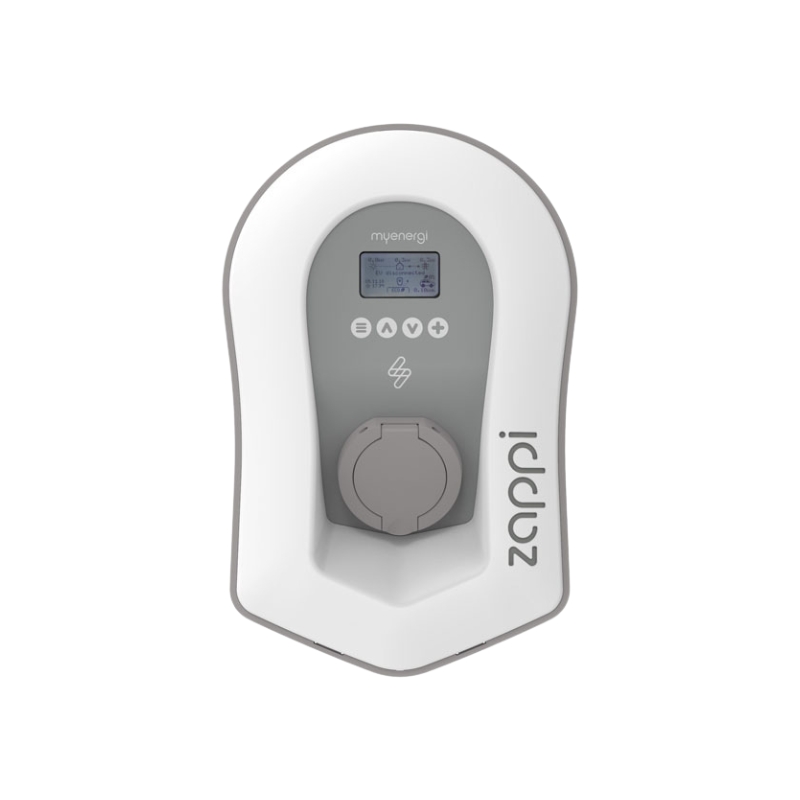

• Available in black or white

Charging Modes

ECO Mode – Mixes grid and solar power to ensure a consistent minimum charge.
ECO+ Mode – Only uses excess self-generated solar. Pauses when solar input is insufficient.
FAST Mode – Charges at the maximum possible rate using any available power source.

What’s Included

• Zappi Untethered EV Charger (7kW or 22kW)

• Lockable Type 2 socket

• Clip-on grid sensor(s)

• Installation and user manuals

• Access to the myenergi app

Technical Specifications

App Control: Yes
Auto Power Balancing (Load Management): Yes
Brand: MyEnergi
CE Certified: Yes
CT Limitations: CT1/CT3: Bi-directional, CT2: Uni-directional
Cable Entry: Rear or Bottom
Charging Current: 6A to 32A (Variable)
Charging Mode: Mode 3
Charging Modes: ECO, ECO+, FAST
Compatibility: Type 2 Vehicles
Communication Protocol: OCPP 1.6J (via Cloud)
Connection Type: Type 2 Socket

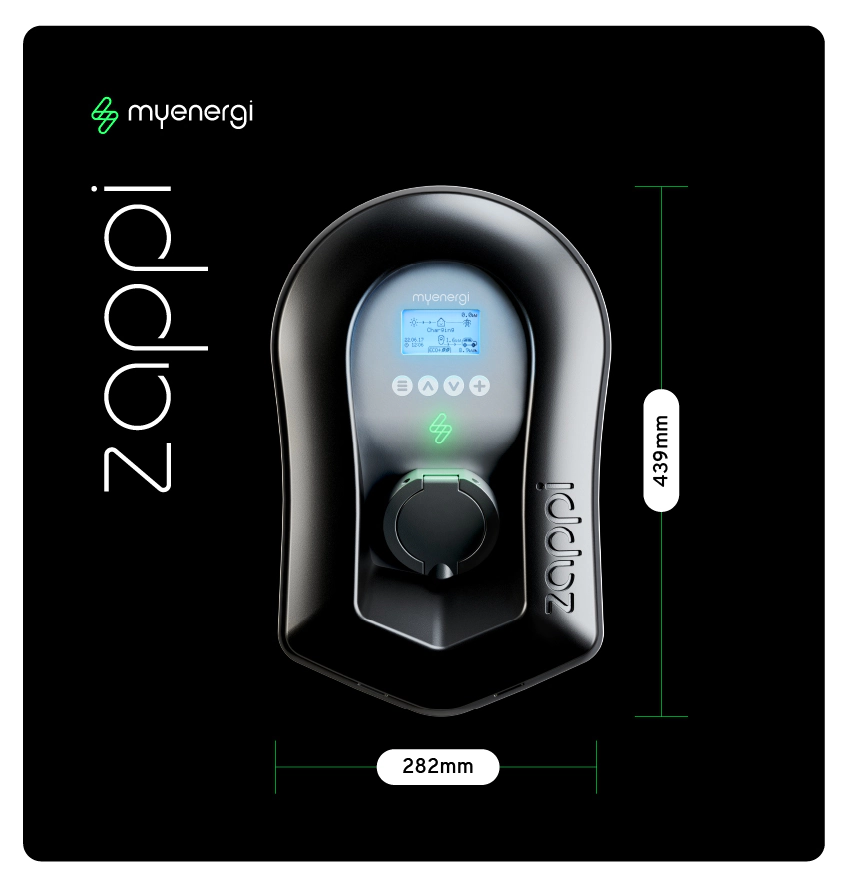

Dimensions (HxWxD): 439mm x 282mm x 122mm
Display: Graphical Backlit LCD
Dynamic Load Balancing: Optional
Economy Tariff Sense: Input 230V AC Sensing (4.0kV Isolated)
Enclosure Material: PC / ASA (batch dependent)
Front Bolt Logo: Multicolour LED (charge status)
Grid Current Sensor: 100A max, 16mm cable diameter
Impact Resistance: IK10
Input Voltage Rating: 230V
Integral Protection: 6mA DC Protection RDC-DD in Accordance with IEC62955
LED Indicator: Multicolour front LED
Lockable: Yes
Metering Accuracy: Class B (1%) – EN 50470
Model: ZAPPI-2H22UW/UB (7kW/22kW Untethered)
Mounting: Wall, Stand
Mounting Location: Indoor or Outdoor (Permanent)
Operating Temperature: -25°C to +40°C
OZEV Approved: Yes
Power Rating: Multiphase 7kW & 22kW
Product Type: EV Charger
Protection: Integrated PEN Fault Protection
Rated Current: 32A Max
Rated Power: 7kW (Single Phase) or 22kW (Three Phase)
Rated Supply Voltage: 400V AC 3 Phase (+/-10%)
Range: Zappi
Remote Charging Schedule: Yes
Socket Type: Type 2 Socket
Standby Power Consumption: 3W
Status Indicator: LCD Screen
Supply Frequency: 50Hz
Supply Voltage: 230V AC (1P) / 400V AC (3P) ±10%
Tamper Proof: Yes
Warranty: 3 Years
Wi-Fi: Yes
Wireless Interface: 868/915MHz (Proprietary Protocol)
