Small. Smart. Scandinavian.
The Zaptec Go 7.4 kW Type 2 EV Charger is a compact, intelligent, and beautifully engineered home charging solution designed and manufactured in Norway. Built on cutting-edge green technology, the Zaptec Go delivers high performance, intelligent load management, and advanced safety features — all in one of the world’s smallest and lightest EV chargers.
Compatible with all electric vehicles and plug-in hybrids, the Zaptec Go adapts to your car’s capacity and provides fast, reliable charging on a single-phase connection. Its minimalist Scandinavian design, durable build, and app integration make it the perfect choice for homes, driveways, and private garages.
Compact. Intelligent. Safe.
Powerful Performance
Charge up to 7.4 kW (32 A single-phase) or up to 22 kW on compatible three-phase systems, delivering up to 10 times faster charging than a standard household socket.
Universal Type 2 Connection
Untethered socket allows complete flexibility with cable choice and vehicle compatibility. Fits all electric cars and plug-in hybrids.
Smart App and Zaptec Go+ Subscription
Connect via Wi-Fi or 4G and manage charging remotely through the Zaptec App. The optional Zaptec Go+ subscription automatically monitors live electricity rates and charges when prices are lowest.
Multiple Charger Support
Install up to three Zaptec Go units on the same property with built-in load balancing to share power intelligently across devices.
Lightweight and Compact Design
80% smaller and lighter than most home chargers, measuring just 242 × 180 × 75 mm and weighing only 1.3 kg. Available in six stylish colours with interchangeable front fascias.
Built for the Elements
Engineered to withstand Scandinavian weather with IP54 weatherproofing, IK8 impact resistance, UV protection, and an operating temperature range from –30°C to +40°C.
Advanced Safety and Reliability
Includes RDC-DD 6 mA DC protection, automatic earth fault reset, and electronic locking for safe and secure charging.
Technical Specifications
| Specification |
Details |
| Rated Power |
7.4 kW (single-phase) / up to 22 kW (three-phase) |
| Input Voltage |
230 V AC (±10%) single-phase / 400 V AC (±10%) three-phase |
| Maximum Current |
32 A |
| Connector Type |
Type 2 (IEC 62196-2) Female Socket, electronic lock |
| Charging Mode |
Mode 3 (IEC 61851-1) |
| Load Management |
Supports up to 3 chargers per property |
| Connectivity |
Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n) and 4G LTE-M |
| App Control |
Zaptec App (Android and iOS) |
| Subscription Option |
Zaptec Go+ for smart tariff and Eco Mode charging |
| RFID Compatibility |
Yes (Mifare Classic Type A) |
| LED Indicator |
RGBW circular LED for device status |
| Operating Temperature |
–30°C to +40°C |
| Enclosure Rating |
IP54 weatherproof, IK8 impact resistant |
| Energy Meter |
Integrated 3-phase meter (~1% accuracy) |
| Material |
UV-resistant, UL94 5VB flammability rated polycarbonate |
| Electrical Protection |
Protection Class II, Overvoltage Category III (4 kV) |
| Earth Fault Protection |
RDC-DD 6 mA automatic reset |
| Dimensions |
242 mm (H) × 180 mm (W) × 75 mm (D) |
| Weight |
1.3 kg |
| Colour Options |

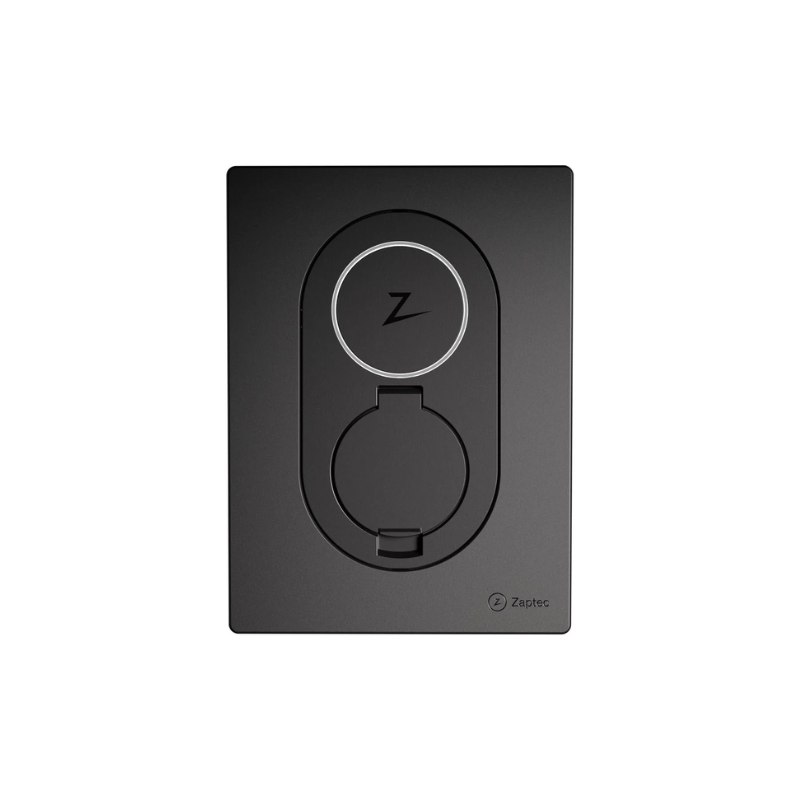

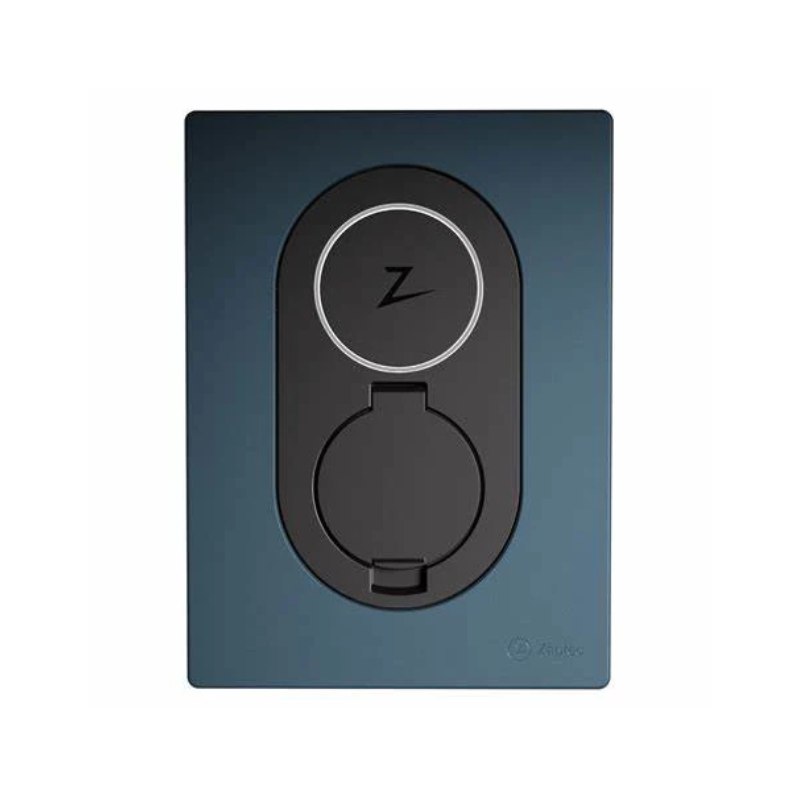

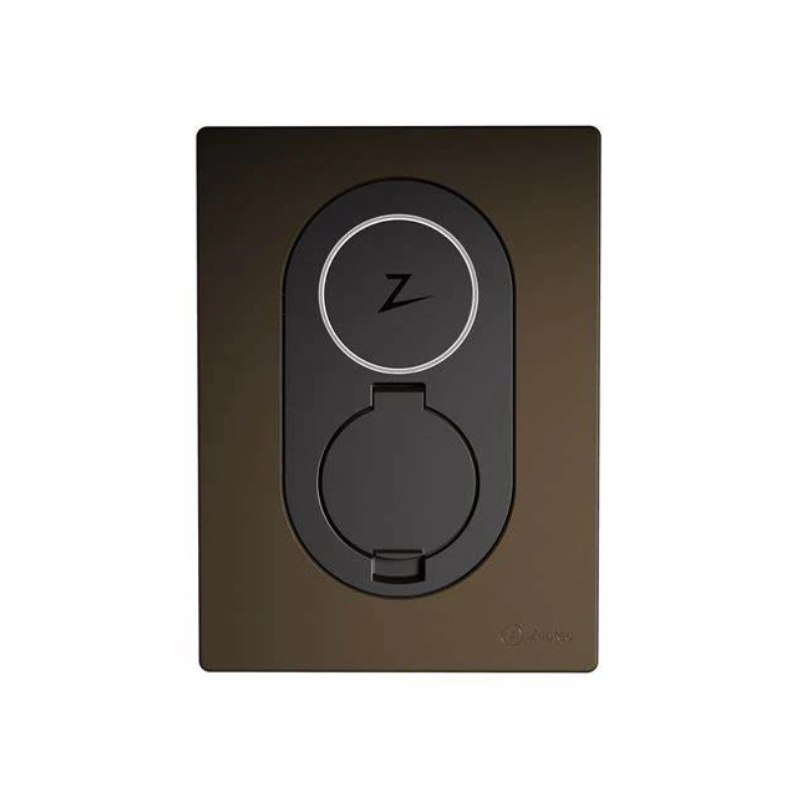

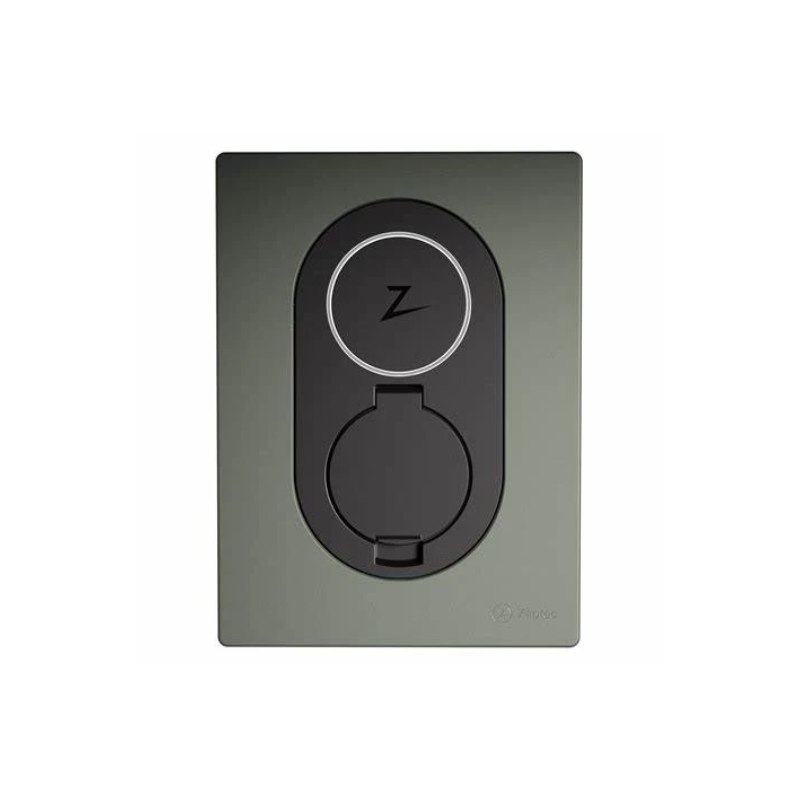

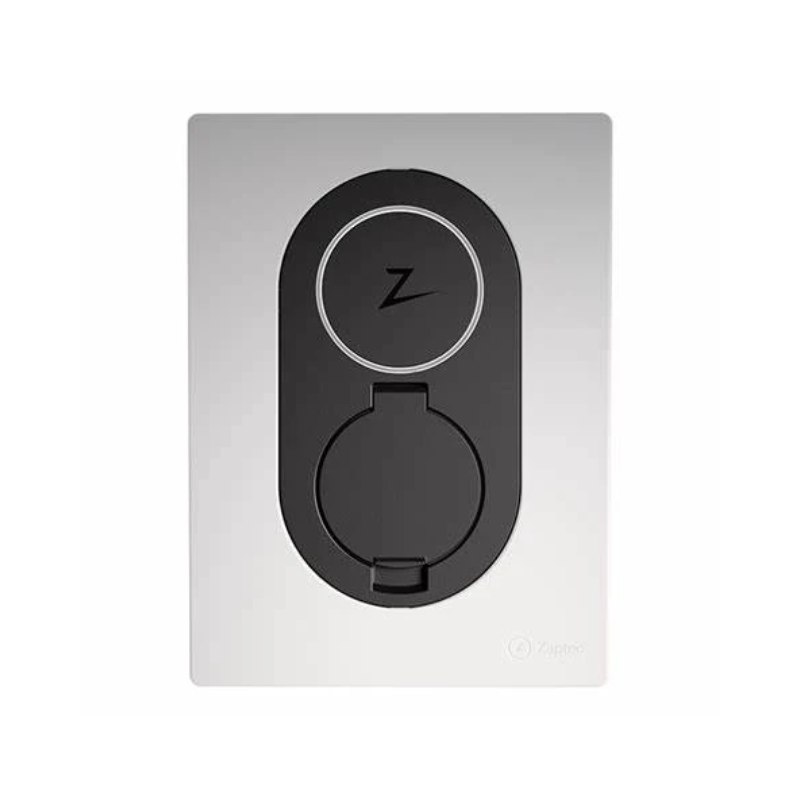

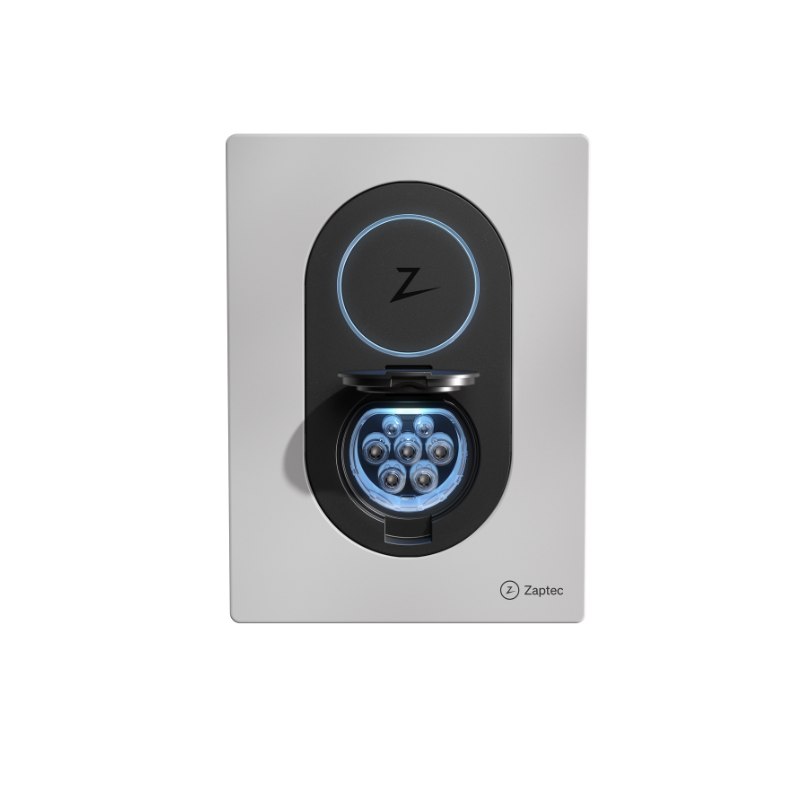

Asphalt Black, Cloud White, Rock Grey, Midnight Blue, Moss Green, Wood Brown |
| Warranty |
5 years |
| Standards Compliance |
IEC 61851-1:2017, IEC 62955, Radio Equipment Directive 2014/53/EU, ROHS Directive 2011/65/EU |
Key Features
• Works with all EVs and plug-in hybrids
• Untethered Type 2 universal socket
• Wi-Fi and 4G connectivity with app control
• Smart load management for up to three units per property
• Zaptec Go+ subscription for smart tariff charging
• Integrated RFID reader for secure access
• LED status indicator and electronic cable lock
• Compact design with six fascia colour options
• IP54 and IK8 rated, UV and weather resistant
• CE and ROHS compliant with a 5-year warranty
Smarter Charging Starts Here
The Zaptec Go combines elegant design, intelligent software, and robust engineering in a compact package that fits perfectly into any home. Built for all EVs, ready for the future, and designed to look as good as it performs — this is Scandinavian charging, redefined.
